56ft
Max. lifting height
11,023Ibs
Max. capacity
123HP/2,200rpm
Rated Power
33,510Ibs
Weight
PRODUCT DETAILS
- Size
- Performance
- Power
- Weight
- Standard configuration
-

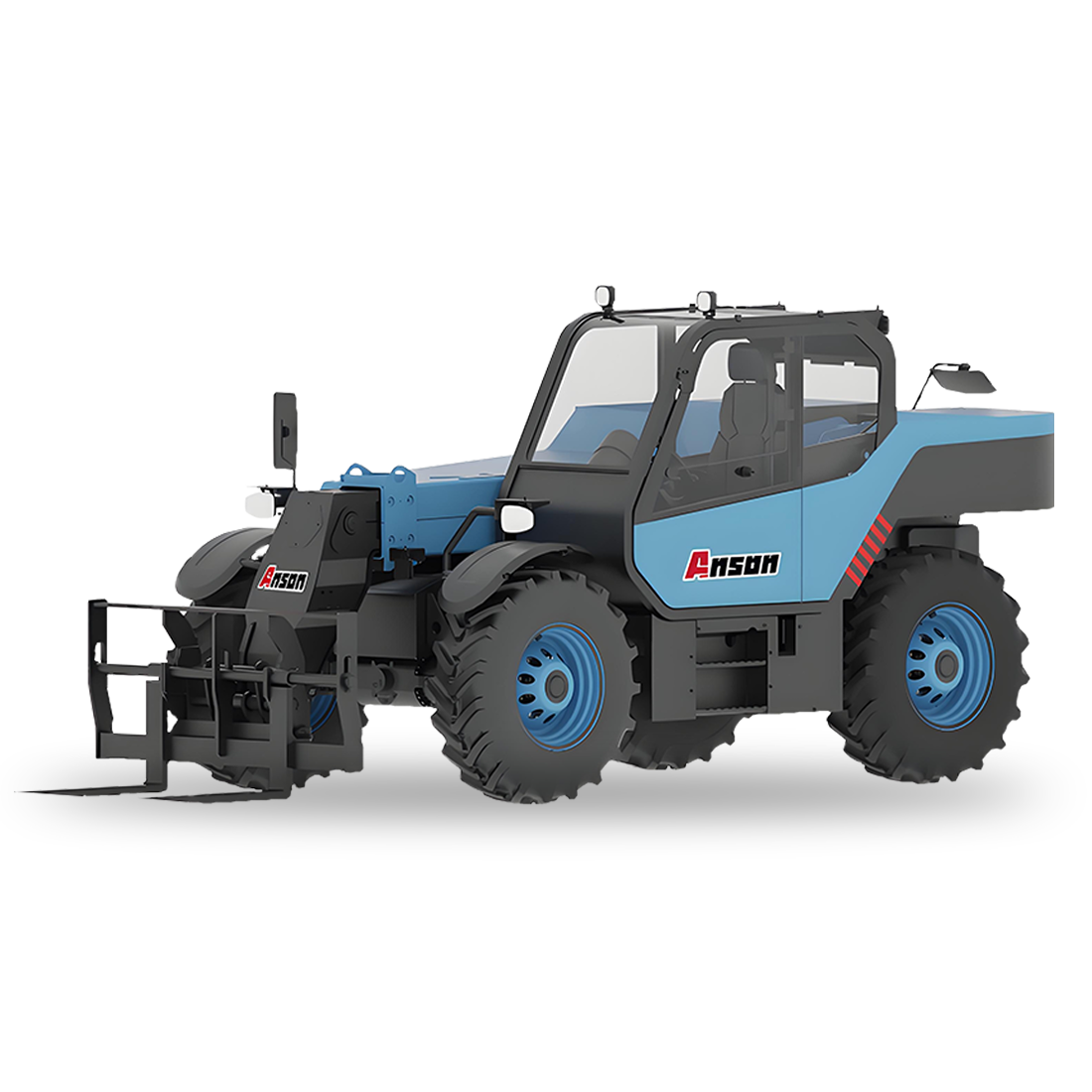

- Commodity name: ASX5611D Telescopic Handler
- Commodity ID: ASX5611D
- Max. lifting height: 56ft
- Max. capacity: 11,023Ibs
- Rated Power: 123HP/2,200rpm
- Weight: 33,510Ibs
- Details: Max. lifting height：56ft Max. capacity：11,023Ibs Rated Power：123HP/2,200rpm Weight：33,510Ibs

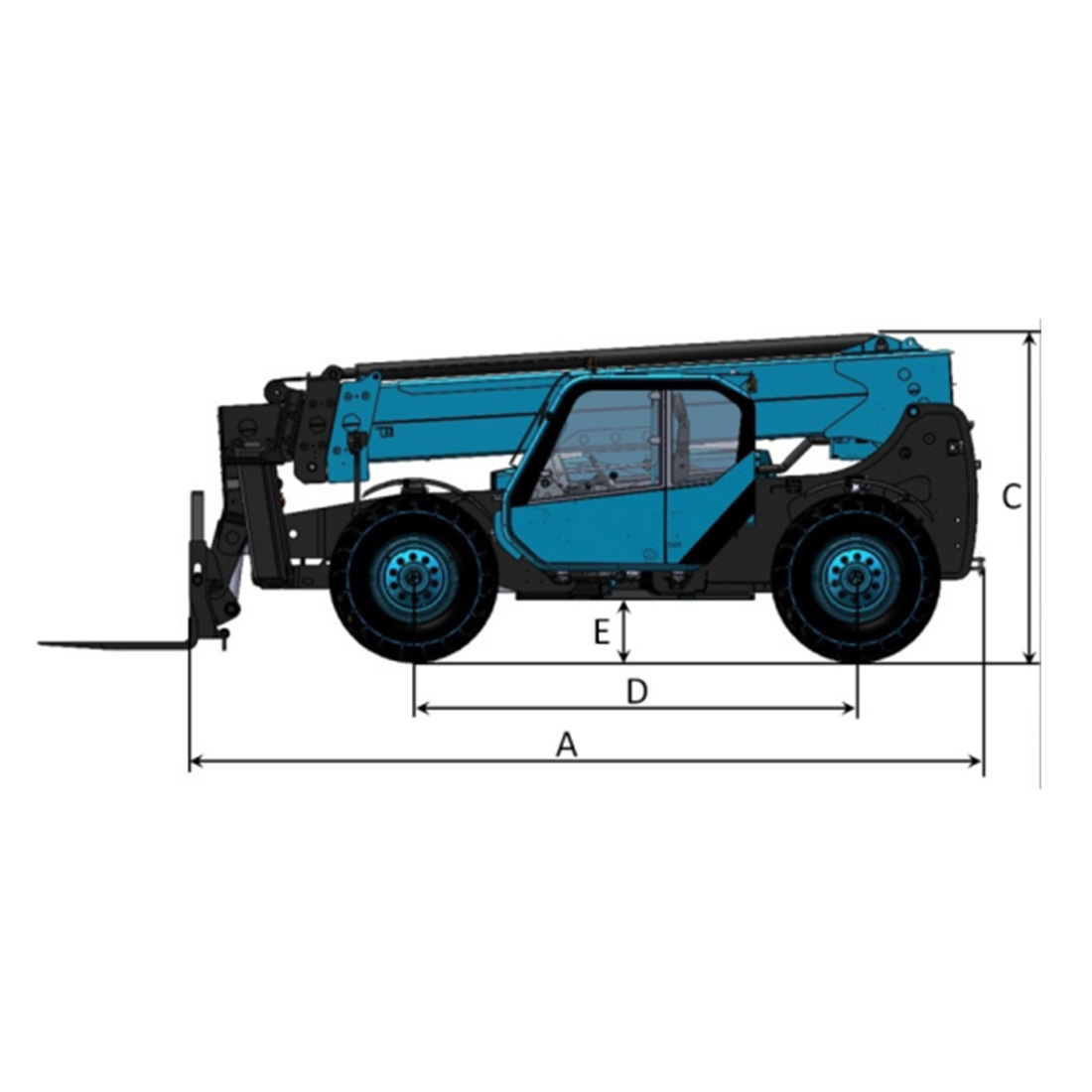

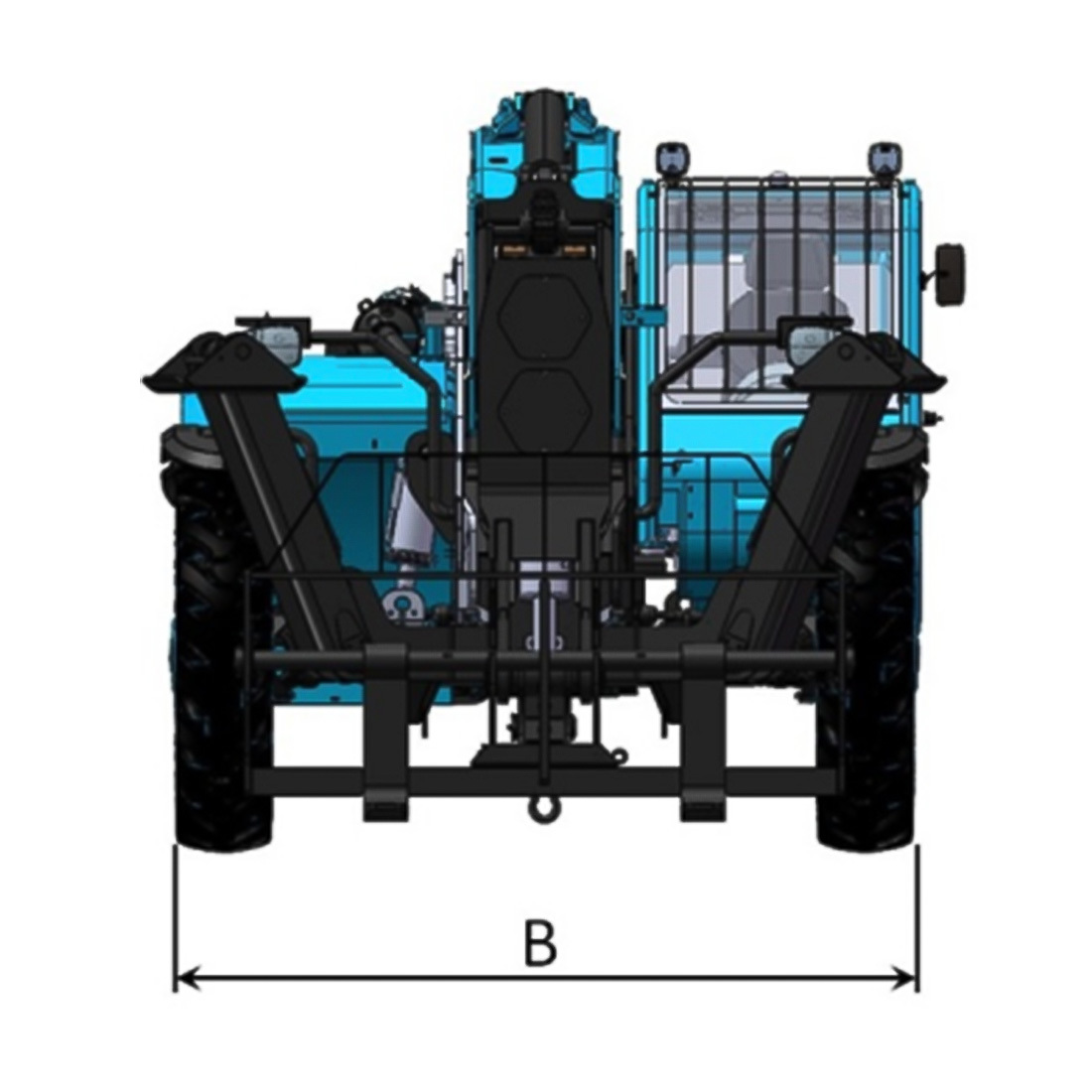

Models ASX5611D Measurements Max. lifting height 56ft Max. forward reach 43ft load centre distance 2ft A.Length - stowed 20ft B.Width 8ft C.Height - stowed 8ft D.Wheelbase 11ft E.Ground clearance - center 1ft -
Productivity Max. capacity 11,023Ibs Frame Leveling ±10° Fork angle（up/down） 14°/-111° Load Capacity at Max. Lift Height 4,982Ibs Load capacity at max. outreach 3,483Ibs Max. Travelling speed 20mph braking length ≤41ft Gradeability 45% Turning radius - outside 14ft Drive×Turning 4×4 Steering mode 2 wheel、4 wheel、Crab Transmission type Hydraulic transmission Tires 14.00-24-16PR -
Power Rated Power 123HP/2,200rpm Emission standard EU StageV Max. torque 500Nm/1,400rpm Fuel tank 140L Hydraulic tank capacity 180L -
Weight Weight 33,510Ibs Standard ISO10896-1
RECOMMENDED PRODUCTS
AS4046HD Elevating Work Platform
ZERO EMISSIONS
Max. platform height：40ft
Platform Extension Distance：3ft
Railings down：7ft
Total platform capacity：705lbs

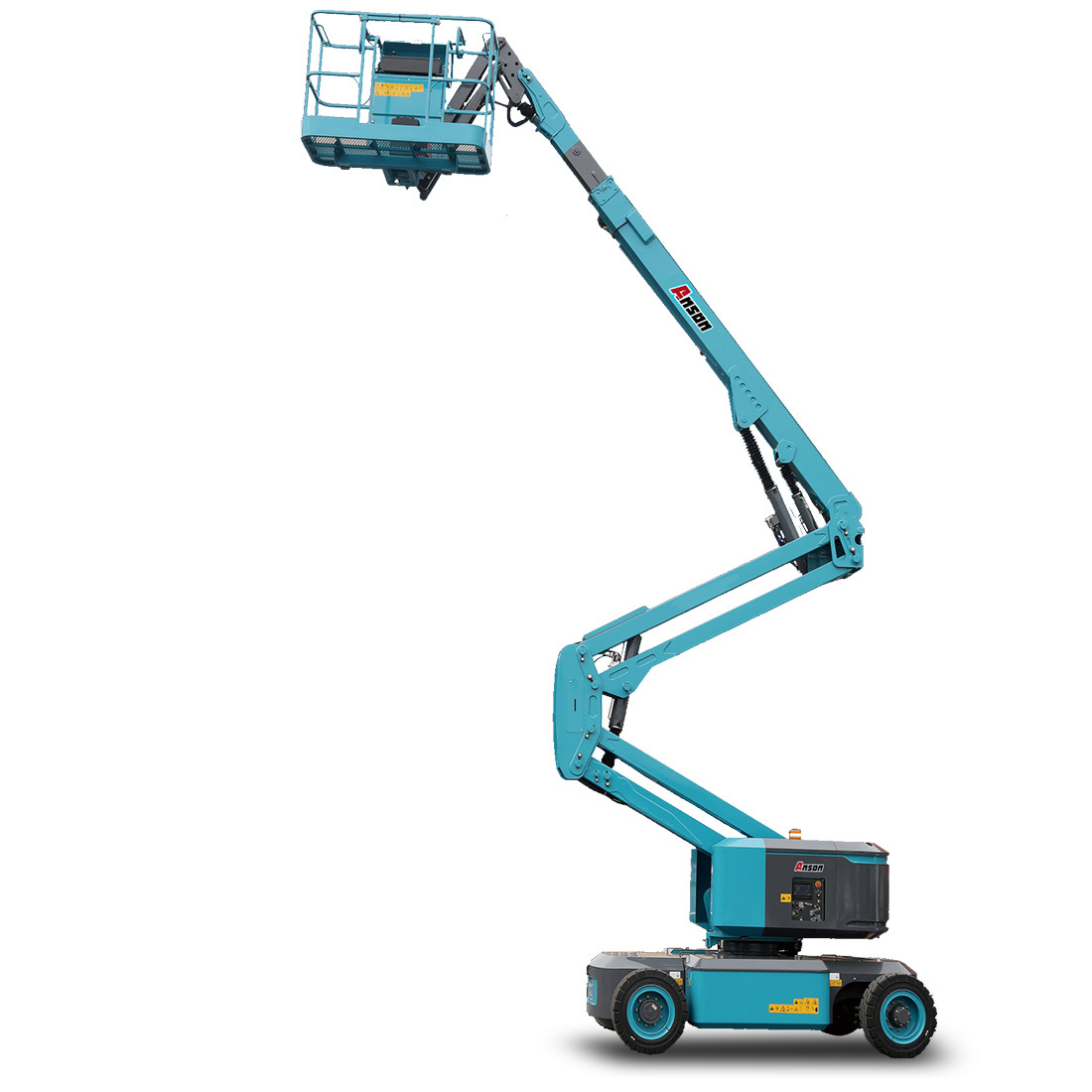

ASA66E Self-Propelled Articulated Booms
ZERO EMISSIONS
Platform height maximum：66ft
Horizontal reach max：43ft
Up and over clearance max：27ft
Lift capacity max：551lbs

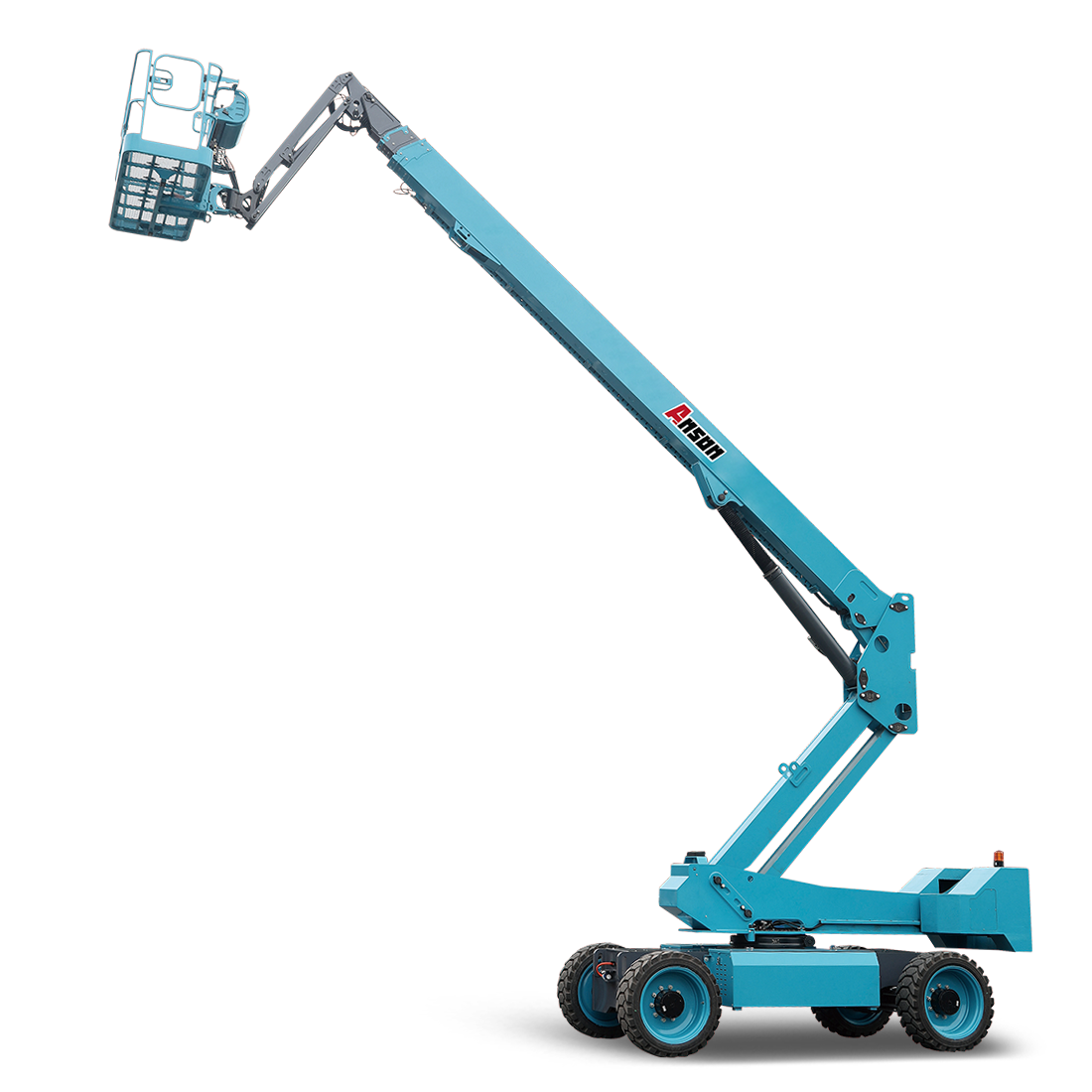

AST88E Self-Propelled Telescopic Booms
