23ft
Max. lifting height
7,716lbs
Max. capacity
127HP/2,200rpm
Rated Power
16,976lbs
Weight
PRODUCT DETAILS
- Size
- Performance
- Power
- Weight
- Standard configuration
-
- Commodity name: ASX2377D Telescopic Handler
- Commodity ID: ASX2377D
- Max. lifting height: 23ft
- Max. capacity: 7,716lbs
- Rated Power: 127HP/2,200rpm
- Weight: 16,976lbs
- Details: Max. lifting height：23ft Max. capacity：7,716lbs Rated Power：127HP/2,200rpm Weight：16,976lbs

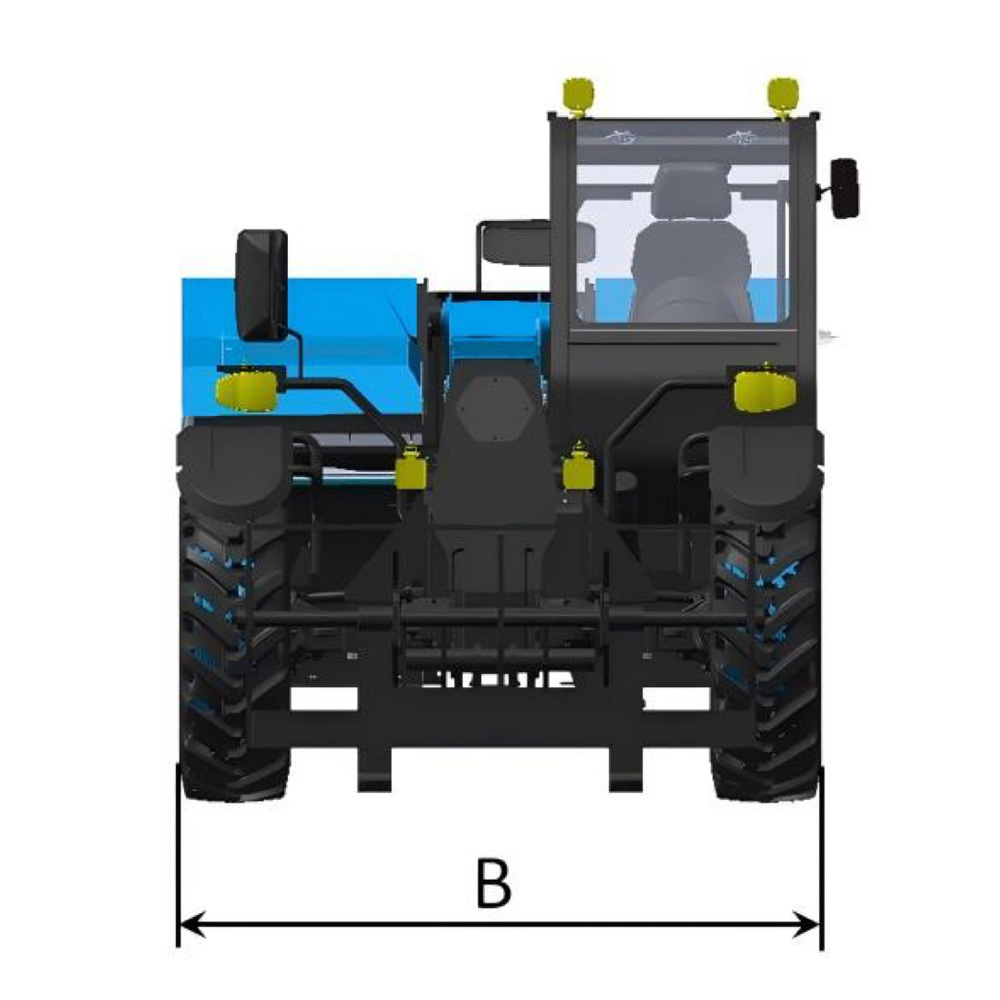

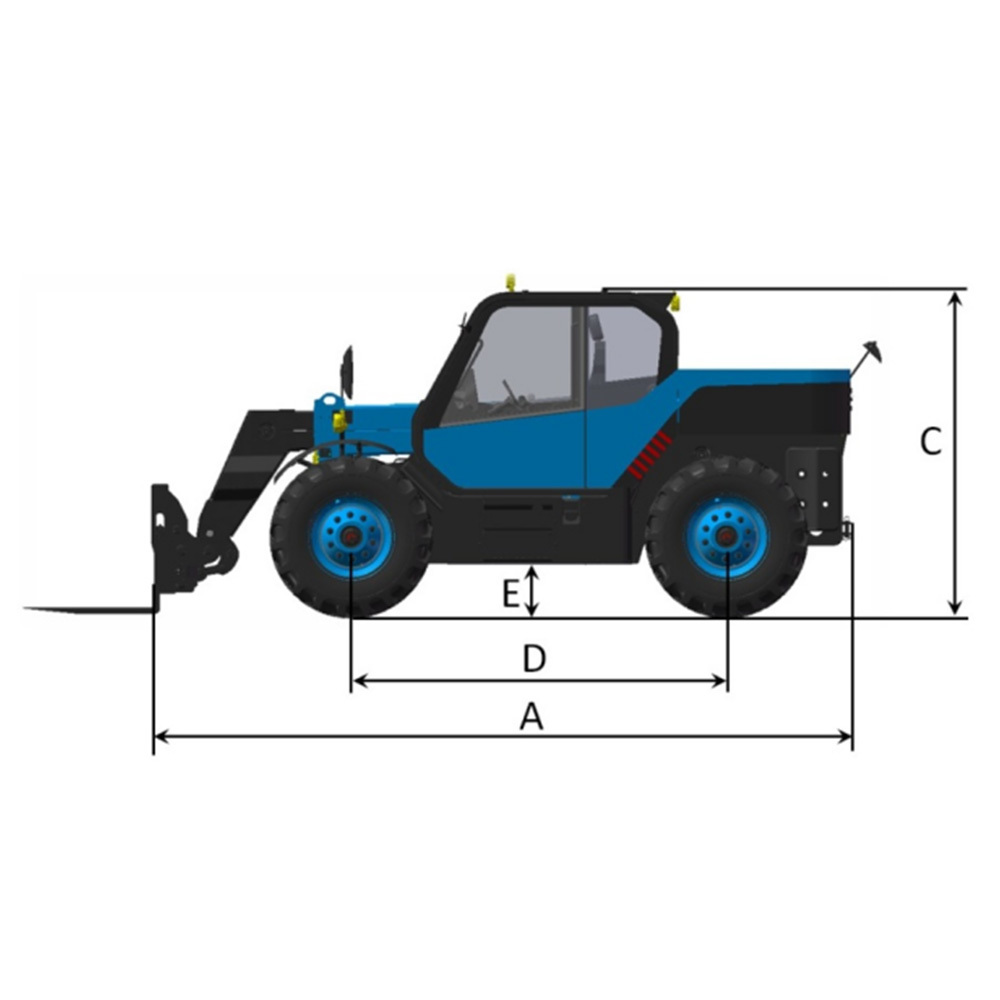

Models ASX2377D Measurements Max. lifting height 23ft Max. forward reach 12ft load centre distance 2ft A.Length - stowed 17ft B.Width 8ft C.Height - stowed 8ft D.Wheelbase 9ft E.Ground clearance - center 1ft -
Productivity Max. capacity 7,716lbs Load Capacity at Max. Lift Height 6,613lbs Frame Leveling ±10° Fork angle（up/down） 14°/-139° Lifting force of the bucket 3,600daN Max. Travelling speed 22mph braking length ≤41ft Gradeability 40% Turning radius - outside 13ft Drive×Turning 4×4 Steering mode 2 wheel、4 wheel、Crab Transmission type Hydraulic transmission Tires 400R-80R24 -
Power Rated Power 127HP/2,200rpm Emission standard EU StageV Max. torque 500Nm/1,400rpm Fuel tank 110L Hydraulic tank capacity 140L -
Weight Weight 16,976lbs Standard ISO10896-1
