AS2632HD

AS2632HD Elevating Work Platform

ZERO EMISSIONS

Category：

Elevating Work Platform

Keywords：

Elevating Work Platform
Get Inquiry
AS2632HD Elevating Work Platform

26ft

Max. platform height

3ft

Platform Extension Distance

6ft

Railings down

507lbs

Total platform capacity

PRODUCT DETAILS

  • Size
  • Performance
  • Power
  • Weight
  • Standard configuration
    • Commodity name: AS2632HD Elevating Work Platform
    • Commodity ID: AS2632HD
    • Max. platform height: 26ft
    • Platform Extension Distance: 3ft
    • Railings down: 6ft
    • Total platform capacity: 507lbs
    • Details: Max. platform height：26ft Platform Extension Distance：3ft Railings down：6ft Total platform capacity：507lbs
    • ZERO EMISSIONS: ZERO EMISSIONS
    Model AS2632HD

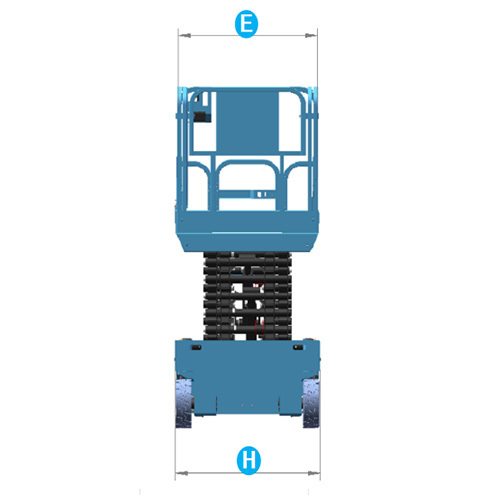

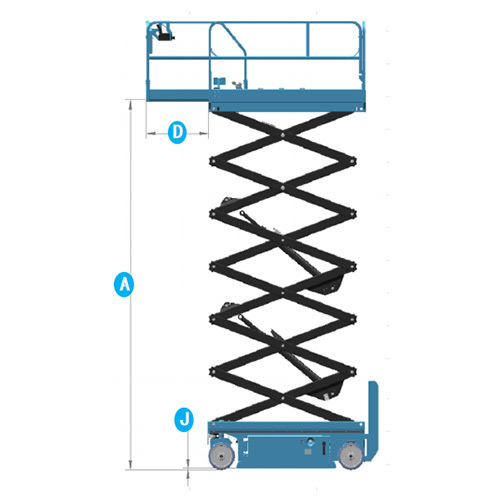

    Size
    Max. working height 33ft
    A.Max. platform height 26ft
    B.Min. platform height 4ft
    C.Platform length 7ft
    D.Extension platform extended    distance 3ft
    E.Platform width 3ft
       Railings height 4ft
    F.Overall height：
       Railings up    		 8ft
       Railings down 6ft
    G.Overall length 8ft
    H.Overall width 3ft
    I.Wheel base 6ft
    J.-Pothole protection plate down 1in
    K.Ground clearance - center 4in
  • Performance
    Max. platform capacities (persons) 2
    Total platform capacity 507lbs
    Extension platform capacity 249lbs
    Max. Drive speed - stowed 2mph
    Drive speed - elevated 0.5mph
    Gradeability - stowed 25%（14°）
    Turning radius - inside 0
    Turning radius - outside 6ft11in
    Max. Working Slope 1.5°/3°
    Lift/lower speed 35s/36s
    Control Proportional
    Drive Dual front wheel
    Multi-disc brakes Dual rear wheel
    Tires - solid rubber without marks
    (OD X width)    		 15 X 5
  • Power
    Battery pack 24V
    4x6V 240AH
  • Overall Weight 4,938lbs
AS2632HD Elevating Work Platform
AS2632HD Elevating Work Platform
AS2632HD Elevating Work Platform
